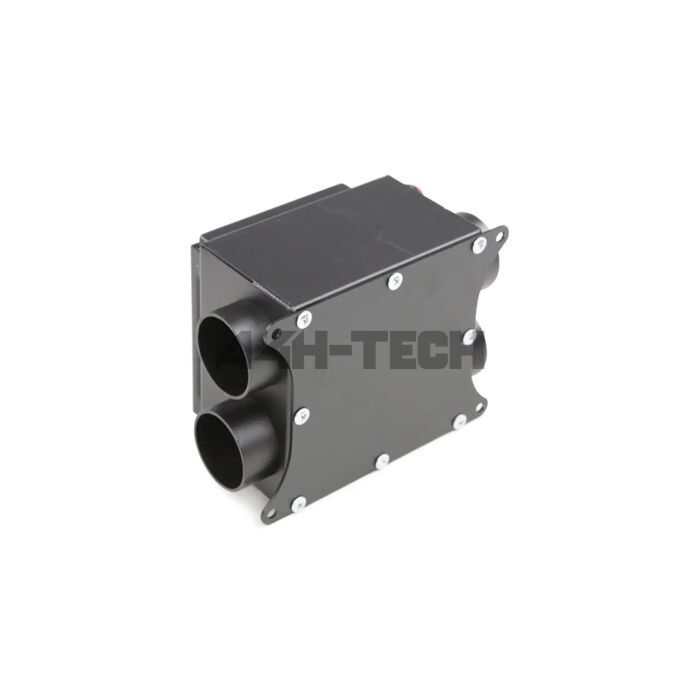

Tegiwa kachelradiateur 12v 3.5KW (universeel)

The light weight heater is ideally suited to vehicles where lightweight and compactness are of the utmost importance without sacrificing heat output. The lightweight heater uses a powerful, space saving axial fan coupled with an efficient copper heater matrix to offer heating performance normally delivered by units twice its size! This heater is in a class of its own in terms of output for size, build quality and cost.

This heater has been fabricated to a pre set configuration that will suit the majority of buyers, for any special configurations please view the 'modular' heater and its various attachments. The 'modular' type heater is of similar dimensions and output, however you may chose from a number of outlets, lids and mounting brackets to configure the unit to your specific requirements.

This has been used in many Civic Cup cars to great affect. Often coupled with the standard under dash vents or sometimes with the demister vents we also sell. Simply takes the existing water feed that goes to your original heaterbox.

Specification:

Heat Output: 3.5kw
Airflow: 190cfm (322m3/h)
Voltage: 12v
Amps: 3a startup, 2a continuous running
Weight: 1150grams
Hose Fittings: 1/2" (13mm)

See picture 3 for the dimensions
