K-tuned adjustable speed sensor VSS K-swap (Honda Civic/CRX/Del Sol/Integra)
Description
K-TUNED Adjustable Speed Convertor.
The VSS (Vehicle Speed Sensor) on the 2004 and up K series transmission uses a different output signal that is not compatible with the 2001 to 2003 ecu, or the original gauge cluster on many K swapped vehicles. This means that in swap situations a converter must be used to properly display speed on the cluster. There are similar products available from other companies that are not adjustable, inaccurate or difficult to install and calibrate. The K-TUNED Adjustable Speed Converter is perfect for anyone using a 2004 and up K series transmission in a swapped car.
The unit comes preprogrammed with calibrated settings for a 205 50/R15 tire with a 23" diameter. The overall 23" tire diameter is very common on swap vehicles. We didn't stop there though, our converter is also fully adjustable allowing it to be used as speedo healer for anyone who wants to dial in the cluster 100% to display the accurate speed of the vehicle.

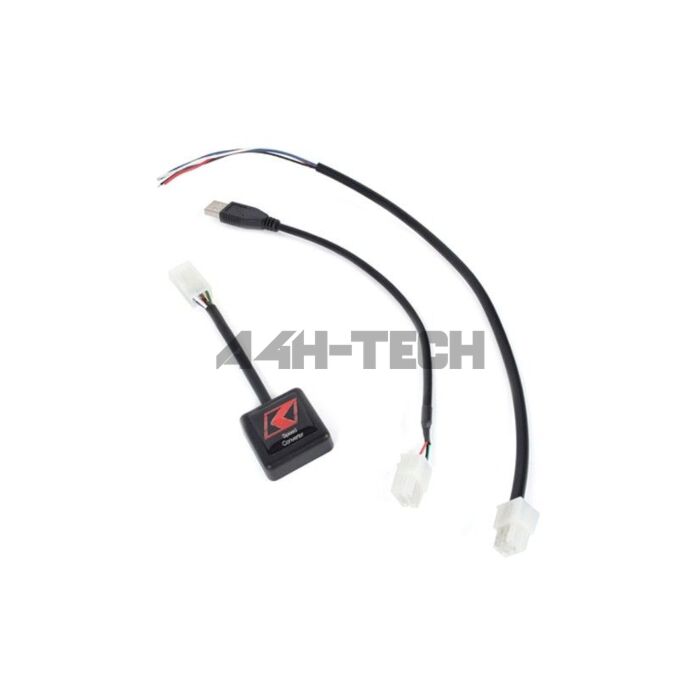

The K-TUNED VSS converter was designed to be wired into the engine harness on the interior of the car near the ecu. Installation is very simple with only 4 wires to connect. Power, ground, speed signal input and speed signal output. The converter comes complete with install instructions plug in harness and jumper plug. This allows the unit to be easily disconnected if needed, because there is a separate wire harness that plugs into the box and the jumper plug reconnects the input and output signals back to stock.
