SKU
BC-BC0031-2

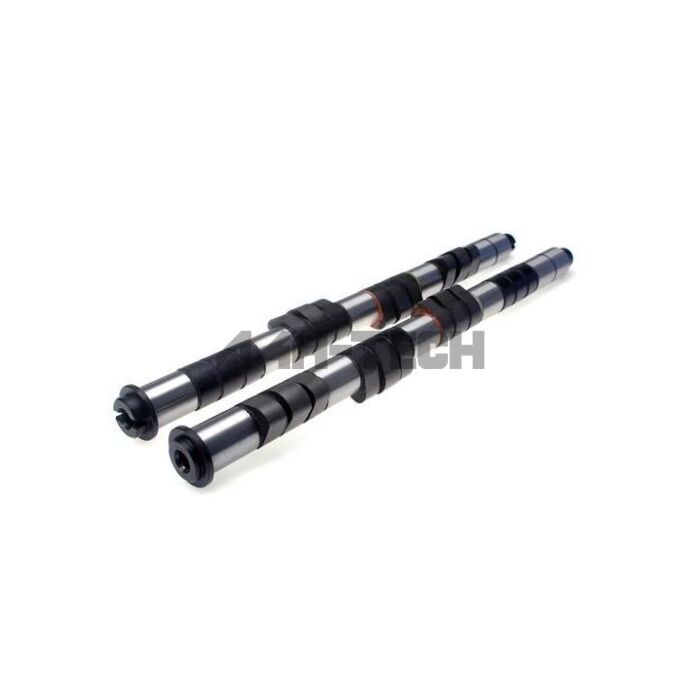

Brian Crower camshafts stage 2 Forced induction Spec (H22-serie engines)

Incl. 21% VAT
€ 832,00

Shipping costs to your country? Calculate it in your cart.

In stock

Description

Honda H22 Stage 2 Camshafts - Forced Induction Spec

NEW PROFILE DESIGN - Short duration profile builds cylinder pressure by reducing overlap, high lift for more air intake. Requires kit BC0030 or BC0030S.

Adv Dur 310°/308°
Dur @ .050 257°/256°
Valve Lift (1.55:1) .486"/.465"
Valve Lift (mm) 12.34/11.81

Cam Card: Click here

IMPORTANT INFORMATION: Do not use impact wrench/gun to torque cam gear to camshaft.Torque cam gear bolt to 22 ft lbs. Aftermarket cams are chilled cast and require a lesser torque value than the OEM/factory steel cams. If using aftermarket gears, make certain the cam gear bolt is able to engage 3 to 4 threads into the body of the cam. Thicker gears will cause the cam bolt to only engage the threads in the snout, increasing the chance of breakage.
Show more

Ask a question about this product

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Description

Honda H22 Stage 2 Camshafts - Forced Induction Spec

NEW PROFILE DESIGN - Short duration profile builds cylinder pressure by reducing overlap, high lift for more air intake. Requires kit BC0030 or BC0030S.

Adv Dur 310°/308°
Dur @ .050 257°/256°
Valve Lift (1.55:1) .486"/.465"
Valve Lift (mm) 12.34/11.81

Cam Card: Click here

IMPORTANT INFORMATION: Do not use impact wrench/gun to torque cam gear to camshaft.Torque cam gear bolt to 22 ft lbs. Aftermarket cams are chilled cast and require a lesser torque value than the OEM/factory steel cams. If using aftermarket gears, make certain the cam gear bolt is able to engage 3 to 4 threads into the body of the cam. Thicker gears will cause the cam bolt to only engage the threads in the snout, increasing the chance of breakage.
Show more
