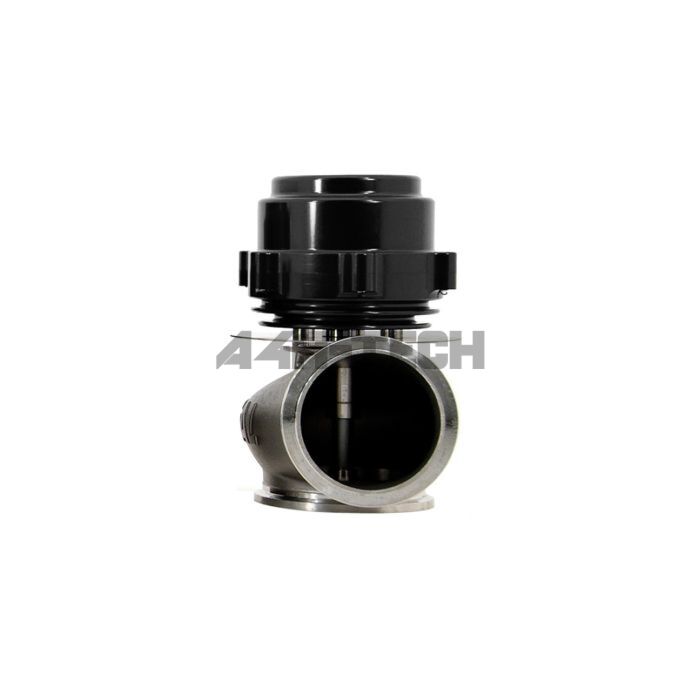

TiAL Sport Externe wastegate zwart 60mm v-band (universeel)

The V60 is the largest, highest-flowing wastegate we offer, and is legendary within the world of Motorsport for the ability to precisely control boost pressure and turbine flow under the most demanding conditions.

Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- M10 air signal ports for easy install.

Included in the package:
- V60 wastegate assembly
- SS Band V-clamps and flanges (Optional legacy billet clamps are available upon request at an additional charge)
- All air fittings, CNC machined in-house, from stainless steel and aluminum

Please select the preferred Bar in the drop down menu

Wastegate 60mm .149 bar (2.17 psi)
Wastegate 60mm .228 bar (3.31 psi)
Wastegate 60mm .299 bar (4.34 psi)
Wastegate 60mm .374 bar (5.43 psi)
Wastegate 60mm .448 bar (6.51 psi)
Wastegate 60mm .522 bar (7.58 psi)
Wastegate 60mm .592 bar (8.60 psi)
Wastegate 60mm .673 bar (9.77 psi)
Wastegate 60mm .751 bar (10.90 psi)
Wastegate 60mm .822 bar (11.935 psi)
Wastegate 60mm .897 bar (13.02 psi)
Wastegate 60mm .967 bar (14.03 psi)
Wastegate 60mm 1.048 bar (15.21 psi)
