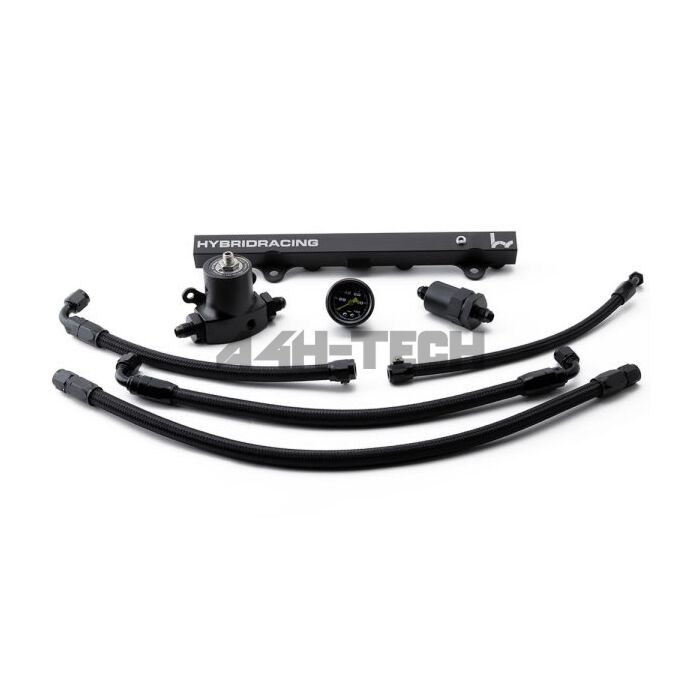

Hybrid Racing brandstofrail + Brandstofleiding tuck kit K-swap (Honda Civic 92-00/Integra 95-00/Del Sol 92-98)

Voorraad en verzendinformatie

80% van de producten in onze shop liggen op interne of externe voorraad en hierdoor kunnen wij jouw order veelal spoedig verwerken (variërend van enkele uren tot een aantal werkdagen).

Uiteraard is het mogelijk dat een product een (onverwacht) lange levertijd heeft.
Na ontvangst van je bestelling, zullen wij je hierover informeren en bieden indien nodig eventuele beschikbare alternatieven aan.

Wij geven bewust achteraf voorraadinformatie over onze producten, omdat veel leveranciers geen systeem aanbieden om dit te kunnen koppelen en wij vooraf geen ''schattingen'' willen tonen zoals bij vele andere webshops, waar je helaas achteraf alsnog een andere/langere levertijd krijgt te horen dan stond aangegeven.
We willen jou alleen actuele informatie geven op het moment van verwerking van de bestelling, zodat we je niet hebben kunnen misleiden met een schatting.

Als je een product heel snel nodig hebt en je wil er zeker van zijn dat we het op voorraad hebben, e-mail of bel ons dan of stuur een bericht via ''stel een vraag over dit product''.

Omschrijving

FUEL LINES

The Hybrid Racing K-Swap tucked fuel line was designed to be a simple pre-assembled kit to adapt your stock fuel system to that of a K-Series engine while also cleaning up your engine bay by eliminating the OEM fuel filter and tucking the fuel lines close to the engine.

The kit routes the fuel lines between the number 2 and number 3 runners and hugs the transmission as it makes its way to the regulator which you will mount below the brake booster. This kit works with the Hybrid Racing Fuel rail or other aftermarket rails which have the necessary port in the center of the rail.

Why do you need a fuel line kit for K-Swaps?

K-Series engines are normally are supplied with return-less fuel systems, meaning the fuel pressure regulator is inside of the fuel tank and has only one line leading to the engine. In most cases, the chassis that you plan on installing your K series engine (in this case EG, EK, DC) utilizes a return system. In order to have the engine run correctly, you will need to convert the K-Series engine to a return system. Although there is only one line going to the rail, this kit is still a return type system since the pressure is still regulated before it goes back to the tank.

E85 compatible

FUEL RAIL

Hybrid Racing fuel rails are made from 6061 aluminum with T6 heat treatment and feature a durable anodized finish with a laser-etched logo ensuring that your engine bay looks fresh and your engine stays fed!

Each rail includes a 1/8" NPT hole that allows you to mount a fuel pressure gauge directly to your fuel rail. This puts the fuel pressure gauge in a spot that's easily visible, so you don't have to poke around in the engine bay just to see if you have fuel pressure. All of the ports can accept a -8 ORB fitting in the inlet(s) and outlet allowing you to run either -6 or -8 AN fuel lines.

The other detail that should stand out is the option for plugging the side inlet and outlet to allow you to run your fuel line to a centrally located -8 ORB fitting. This is positioned so that the fuel line can pass between the middle two cylinder intake runners (depending on your intake manifold.) This is an excellent option for anyone looking to tuck their wires and lines.

What intake manifolds is this rail compatible with?
This rail has been shown to mount to the PRB, RBC, and RBB intake manifolds without needing any modifications. Any aftermarket intake manifolds that share the same fuel rail mounting points as the PRB, RBC, or RBB should also accept this rail.

FUEL PRESSURE REGULATOR

The fuel pressure regulator is often overlooked, but a very critical component in a vehicle’s fuel system. Without a reliable and consistent fuel pressure, your ECU has no way of knowing how much fuel it is injecting into each cylinder. Most conventional fuel pressure regulators use a bladder-type design. Although the bladder-type design is cost-effective and reacts to disturbances quickly, those bladders often lead to significant pressure fluctuations, which are manifested as a bouncing needle on your pressure gauge.

The Hybrid Racing fuel pressure regulator features a piston-type design that introduces damping into the regulator to reduce pressure fluctuations and needle bounce, giving you a more stable and reliable fuel pressure. Constructed from aircraft-grade 6061-T6 aluminum and 304 stainless steel, each regulator receives durable Teflon impregnated, hard-anodized finish and redundant seal quad o-rings for improved performance and longevity. The end product is a regulator that keeps your fuel pressure consistent and looks good doing it. Each regulator comes supplied with all of the fittings you’ll need to hook up either a return or returnless fuel system with -6 AN lines. The regulator can accept up to -8AN lines. (Package includes: x3 -8ORB/-6AN fittings,x1 -6ORB/-4AN, x1 1/8th NPT plug, Nylon vacuum port, anodized billet mounting bracket & hardware)

E85 compatible

FUEL PRESSURE GAUGE

The precision-engineered Hybrid Racing fuel pressure gauge provides accurate fuel pressure readings that are critical for highly sophisticated fuel systems. They resist the most severe vibrations, offer a 0-100 psi reading, and are housed in an all-steel case with a matte black finish and a Hybrid Racing Green needle.

No OEM Honda comes with a fuel pressure gauge and without one, you can not monitor or set your fuel pressure. With a fuel pressure gauge and a fuel pressure regulator, you can accurately dial in the amount of fuel your engine gets to ensure maximum performance. In the case of a K-swap, you will need a fuel pressure gauge so that you can accurately set your fuel pressure around 50-52 psi. The gauge has two subtle marks to help you line up your fuel pressure when running a K-Series engine.

Specifications:
- Tucked Fuel Line Kit for K-Series Conversions in EG/EK/DC Chassis.
- -6AN Black Nylon lines & 100 Micron filter. (fittings not included)
- -4AN Return Line
- Pressure and leak tested after assembly.

What's included:
