Haltech Nexus R5 VCU + wire-in harness 2.5m (universeel)
80% van de producten in onze shop liggen op interne of externe voorraad en hierdoor kunnen wij jouw order veelal spoedig verwerken (variërend van enkele uren tot een aantal werkdagen).
Uiteraard is het mogelijk dat een product een (onverwacht) lange levertijd heeft.
Na ontvangst van je bestelling, zullen wij je hierover informeren en bieden indien nodig eventuele beschikbare alternatieven aan.
Wij geven bewust achteraf voorraadinformatie over onze producten, omdat veel leveranciers geen systeem aanbieden om dit te kunnen koppelen en wij vooraf geen ''schattingen'' willen tonen zoals bij vele andere webshops, waar je helaas achteraf alsnog een andere/langere levertijd krijgt te horen dan stond aangegeven.
We willen jou alleen actuele informatie geven op het moment van verwerking van de bestelling, zodat we je niet hebben kunnen misleiden met een schatting.
Als je een product heel snel nodig hebt en je wil er zeker van zijn dat we het op voorraad hebben, e-mail of bel ons dan of stuur een bericht via ''stel een vraag over dit product''.
Haltech Nexus R5 VCU + universal wire-in harness 2.5m.
The Haltech Nexus R5 VCU (Vehicle Control Unit) with a 2.5m universal wire-in harness is the flagship control system in the Haltech lineup, designed for elite racing applications, comprehensive engine swaps, and custom wiring jobs. This ultra-powerful device seamlessly integrates a state-of-the-art engine management system, a power distribution module (PDM), a dual-channel wideband controller, and a high-capacity data logger into a single unit. By combining these advanced systems, the Nexus R5 simplifies your vehicle's entire electrical architecture, reducing weight and eliminating the need for external modules.
The included universal harness features color-coded and clearly labeled wires at the unterminated end, matching the detailed wiring diagram for a straightforward and confusion-free construction process. It is suitable for complex engine configurations up to 18 cylinders or multi-rotor setups, offering unmatched power management and advanced tuning features.
Features and Software Functions:
- Flagship Integration: Combines an advanced ECU, a complete power distribution module, dual wideband controllers, and massive data logging capability.
- Integrated PDM: Features four 25A high-current outputs and twelve 8A high-side outputs to power injectors, coils, transbrakes, fans, and accessories directly.
- Advanced Tuning and Controls: Features 4D closed-loop boost control, closed-loop CO2 control, traction control, launch control, anti-lag, and rotational idle.
- Dual Drive-By-Wire Throttle: Fully supports dual electronic throttle bodies with built-in redundancies.
- Automatic Transmission Control: Compatible with Ford (AODE/4R70W), GM (4L60E/4L80E), Toyota (A340E), Lenco, and Liberty transmissions.
- Multi-Level Engine Protection: Features an integrated, highly advanced engine protection system.
- Suspension and Traction: Supports shock travel and ride height monitoring, alongside advanced torque management targeting driveshaft and engine RPM.
- Racing Features: Includes an integrated race timer, trans brake control, advanced flat shift support, and up to 6 stages of nitrous control.
- High-Speed Logging: Onboard data logging with a massive 512MB internal memory, supporting up to 300 channels at sample rates up to 1ms (1kHz).
- Modern Connectivity: Onboard Wi-Fi and USB-C port for low power up via cable and high-speed communications, compatible with the Haltech Connect App.
Specifications:
- High-Current Outputs (HCO): 4 x 25A continuous (push-pull PWM capable, 5 kHz)
- High-Side Outputs: 12 x 8A continuous (low speed PWM, 200 Hz)
- Half Bridge Outputs (HBO): 4 x 8A (PWM capable, e.g., for electronic throttle)
- Peak and Hold Injector Drivers: 18 (can be used as low-side outputs)
- Ignition Outputs: 12 x low-current (can be used as low-side outputs)
- Digital Pulsed Outputs (DPO): 8 x low-side drive outputs (PWM capable)
- Analog Voltage Inputs (AVI): 23 x 0-5V with redundancy for electronic throttle and switchable 5V pullups
- Engine Position Inputs: 2 x Differential (Trigger and Home) with adjustable thresholds and glitch filters
- Synchronized Pulsed Inputs (SPI): 10 x frequency, zero crossing, or analog inputs (cam sensors, frequency inputs, or 0-5V analog inputs)
- Knock Sensor Inputs: 2
- Wideband Controller: 2 x Onboard controllers supporting NTK and LSU 4.9 sensors
- MAP Sensor: External
- CAN Bus Networks: 3 with switchable termination
- On-Board PDM: Yes
- Inertia / G-Sensor: Yes
- Tuning Table Resolution: 32x32x8 4D
- Variable Cam Control: Up to 4-sensor variable cam control
- Onboard Storage: 512MB
- Low Power Up via Cable: Yes
- Wi-Fi: Yes

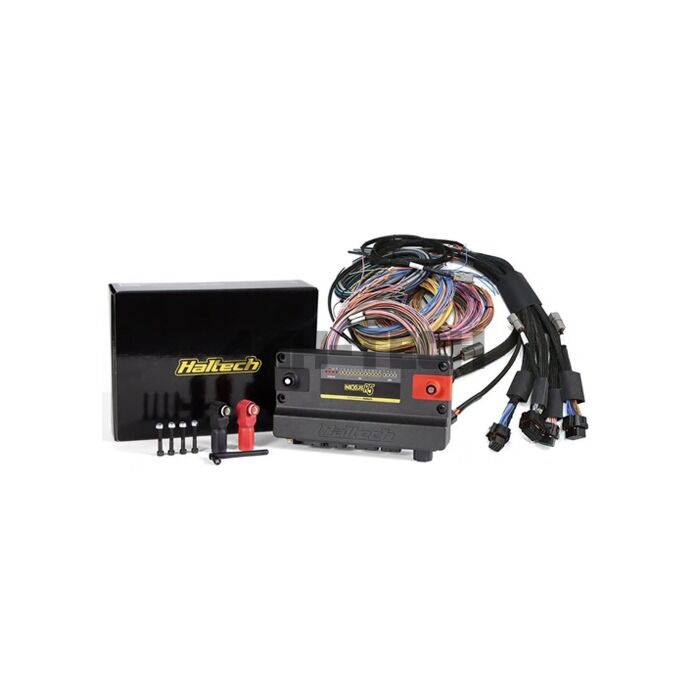

Kit Includes:
- (1) Haltech Nexus R5 VCU
- (1) Haltech Nexus R5 Universal Wire-in engine harness (2.5m)
- SurLok connectors (Red and Black)
- (1) Wi-Fi antenna
- Mounting bolts
- USB-C Cable and USB-C dust cap
- USB key containing full VCU manual and Software
