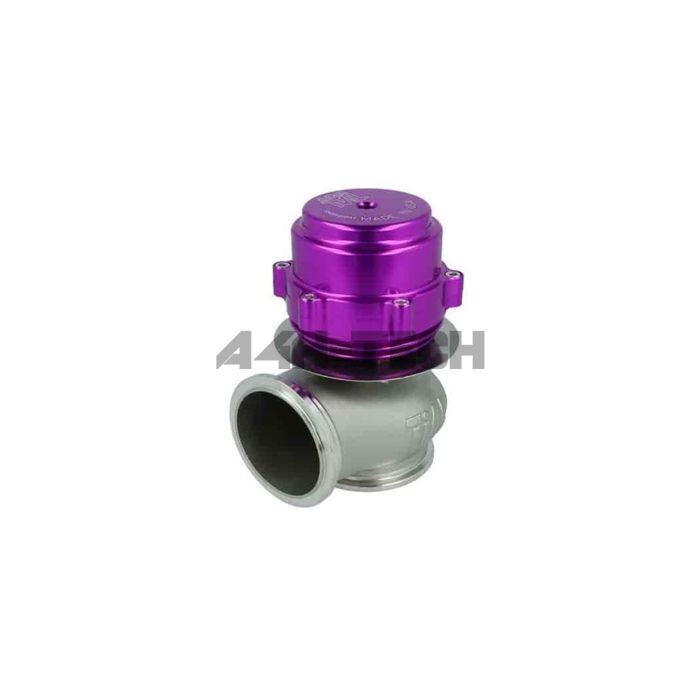

TiAL Sport External wastegate purple 50mm v-band (universal)

The V50 shares the same form factor with the legendary V60, but offers a smaller valve size for applications that are sensitive to EMAP-induced valve lift.

Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- M10 air signal ports for easy install.

Included in the package:
- V50 wastegate assembly
- SS Band V-clamps and flanges (Optional legacy billet clamps are available upon request at an additional charge)
- All air fittings, CNC machined in-house, from stainless steel and aluminum

Please select the preferred Bar in the drop down menu

Wastegate 50mm .19 Bar (2.76 psi)
Wastegate 50mm .27 Bar (3.92 psi)
Wastegate 50mm .35 Bar (5.08 psi)
Wastegate 50mm .43 Bar (6.24 psi)
Wastegate 50mm .52 Bar (7.54 psi)
Wastegate 50mm .592 Bar (8.60 psi)
Wastegate 50mm .67 Bar (9.72 psi)
Wastegate 50mm .75 Bar (10.88 psi)
Wastegate 50mm .86 Bar (12.47 psi)
Wastegate 50mm .95 Bar (13.78 psi)
Wastegate 50mm 1.02 Bar (14.79 psi)
Wastegate 50mm 1.1 Bar (15.95 psi)
Wastegate 50mm 1.18 Bar (17.11 psi)
Wastegate 50mm 1.23 Bar (17.84 psi)
Wastegate 50mm 1.31 Bar (19.0 psi)
Wastegate 50mm 1.4 Bar (20.3 psi)
Wastegate 50mm 1.49 Bar (21.61 psi)
Wastegate 50mm 1.57 Bar (22.77 psi)
