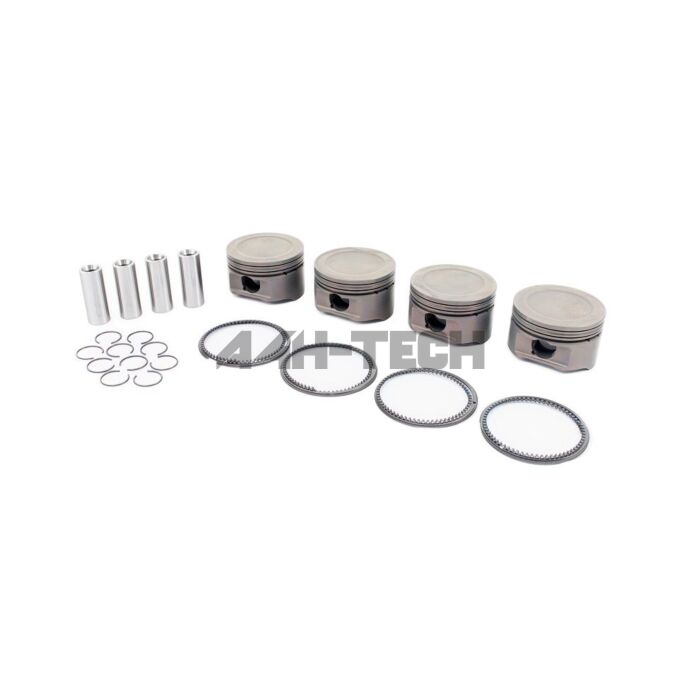

Supertech pistons 11:1 compression (B16A engines)
80% of the products in our store are in internal or external stock and we can often process your order quickly (varying from a few hours to a number of business days).
Naturally it is possible that a product has an (unexpected) longer delivery time.
Upon receipt of your order, we will always inform you about this and offer any available alternatives. So keep a close eye on your mailbox.
We deliberately provide stock information about our products afterwards, because many suppliers do not offer a ''stock link system'' and we do not want to show '' estimates '' in advance, like many other webshops do (which are often incorrect and give you wrong information in advance). We only want to give our customers actual information on the moment of processing the order so we don't mislead our customers.
If you need a product VERY quickly and you need to be sure that we have it in stock, please e-mail or call us or send a message via ''ask a question about this product'' below in the product description.
Supertech Pistons are manufactured from extruded high silicone, enhanced 4032 alloy (with additional Cu, Ni & Mg) that had low thermal expansion, excellent wear resistance and higher thermal conductivity.
Supertech Pistons, with this alloy, have withstood up to 42psi of boost, with alcohol, without any problems. A two or three step forging process yields a fine structural grain which are then submitted to several machining steps in state of the art CNC machines.
Several heat treatments provide the piston with high tensile strength and evenly distributed hardness. Contact reduction grooves are standard, and pin bores are honed and reamed for precise fit.
Wrist pins are constructed of cold extruded chrome moly steel for high strength and used with wire clip locks. Finally, the pistons receive a ‘phosphate dry lubricant’ coating to protect the rings against ‘micro-welding’ and enhance lubrication on the skirt/cylinder area.
Bore: 81.00mm/81.5mm/82mm (bigger also, but specs will change)
Comp Ratio: 11:1
Volume CCs: 7.5
Head CCs: 42.7
Comp Height: 1.181"(30mm)
Stroke: 3.047"
Rod Length: 5.290"
Pin Diam: 21mm(.827")
Weight: 246grs
PLEASE NOTE: PISTON RINGS ARE NOT INCLUDED AND SEPERATELY AVAILABLE.
