SpeedFactory 4140 high performance head bolts / head studs (Honda D-serie engines)
80% of the products in our store are in internal or external stock and we can often process your order quickly (varying from a few hours to a number of business days).
Naturally it is possible that a product has an (unexpected) longer delivery time.
Upon receipt of your order, we will always inform you about this and offer any available alternatives.
We deliberately provide stock information about our products afterwards, because many suppliers do not offer a ''stock link system'' and we do not want to show '' estimates '' in advance, like many other webshops do (which are often incorrect and give you wrong information in advance).
We only want to give our customers actual information on the moment of processing the order so we don't mislead our customers.
If you need a product VERY quickly and you need to be sure that we have it in stock, please e-mail or call us or send a message via ''ask a question about this product''.

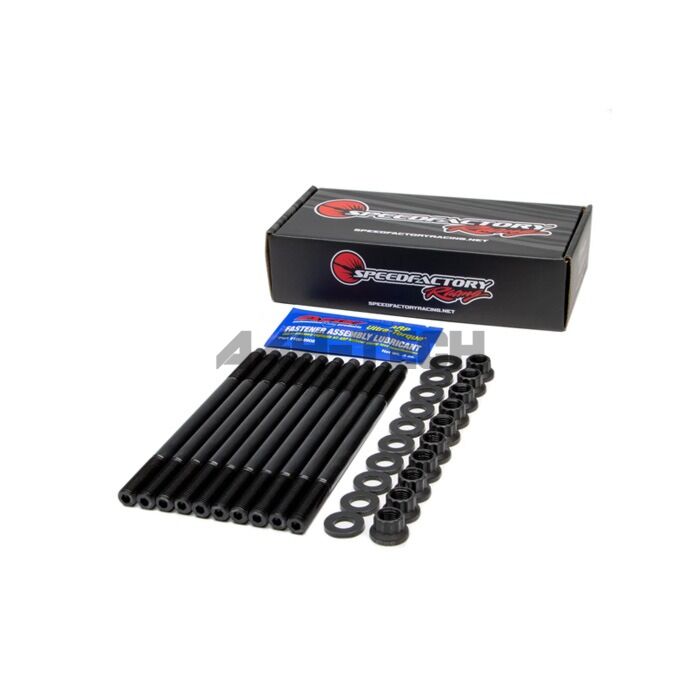

SpeedFactory 4140 head bolts / head studs.
The SpeedFactory Racing 4140 head stud kit is designed as a universal solution for all D-series engine block and cylinder head combinations, eliminating the need to mix and match hardware. Built to withstand high cylinder pressures in forced induction applications, these studs feature a dog point end for accurate seating and consistent preloading, alongside oversized forged nuts and washers for superior load distribution compared to standard hardware.
Features:
- Designed to fit all D15 and D16 engine block and head combinations, including VTEC and non-VTEC setups
- Manufactured with a 200,000 psi tensile rating and a 10mm diameter
- Dog point design seats the stud in the block for superior preload and accurate torqueing
- Integrated 5/32 inch top hex broach allows for easy installation
- Oversized forged 13mm 12-point nuts and hardened parallel ground washers deliver optimal load distribution
- Finished with a corrosion-resistant black oxide coating
- Direct drop-in replacement for factory head bolts
Kit Includes:
- (10) 4140 Head studs
- (10) Oversized forged 13mm 12-point nuts
- (10) Hardened parallel ground washers
- (1) ARP Ultra-Torque assembly lubricant
Fitments:
All D Series
1.5L SOHC (D15B1/D15B2/D15B6/D15B7/D15B8)
1.6L SOHC (D16A6/D16Z6/D16Y5/D16Y7/D16Y8)
1.7L SOHC (D17A1/D17A2)
"Mini-Me" builds (D16Z6 or Y8 VTEC head on D15/D16 Non-VTEC block)
