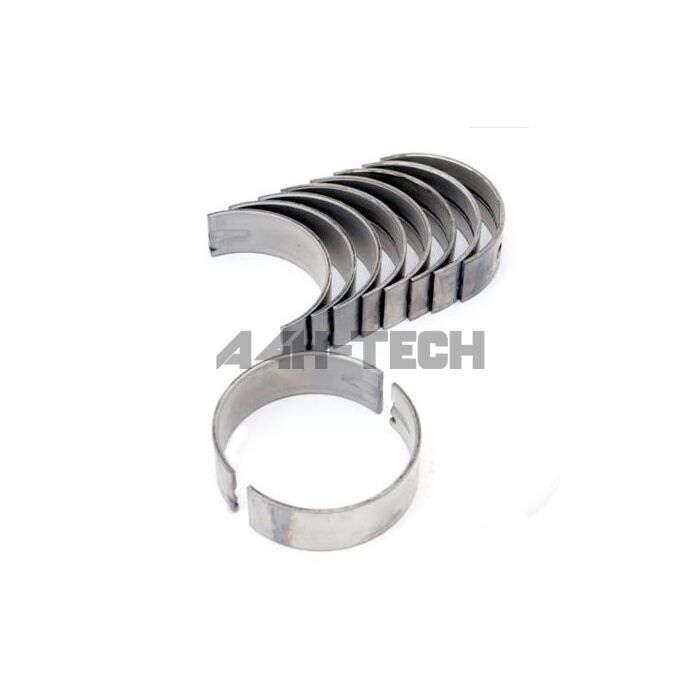

Mahle Clevite Race connecting rod bearings (Honda K20A/K24A engines)

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance engine bearings.

Designed to withstand higher RPM conditions, Mahle Clevite Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
High strength overlay plate with reduced thickness for improved fatigue properties
Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
Increased crush for improved bearing retention
Elimination of flash plating on the back of the bearings to improve heat transfer through the bearing sand to maximize the grip between the bearings and its housing
Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
Tight consistent wall tolerances to help you maintain consistent clearances.
Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Measurements:

Sizes: STD
Oil Clearance: Standard
Half Type: Identical Halves
Material: Tri-Metal Hardened Steel Backs
Min Std Shaft Size: 1.880in / 47.98mm
Max Std Shaft Size: 1.8898in / 48mm
Min Std Tunnel Size: 2.008in / 51.004mm
Max Std Tunnel Size: 2.0088in / 51.024mm
Max Wall at Crown: 0.0591in / 1.5mm
Max Overall Length: 0.6063in /15.4mm
