Haltech Nexus R5 VCU.
The Haltech Nexus R5 VCU (Vehicle Control Unit) is the standalone flagship control system in the Haltech lineup, designed for elite racing applications and custom wiring projects. This ultra-powerful device seamlessly integrates a state-of-the-art engine management system, a power distribution module (PDM), a dual-channel wideband controller, and a high-capacity data logger into a single unit. By combining these advanced systems, the Nexus R5 simplifies your vehicle's entire electrical architecture, reducing weight and eliminating the need for external modules. It is suitable for complex engine configurations up to 18 cylinders or multi-rotor setups, offering unmatched power management and advanced tuning features.
Features and Software Functions:
- Flagship Integration: Combines an advanced ECU, a complete power distribution module, dual wideband controllers, and massive data logging capability.
- Integrated PDM: Features four 25A high-current outputs and twelve 8A high-side outputs to power injectors, coils, transbrakes, fans, and accessories directly.
- Advanced Tuning and Controls: Features 4D closed-loop boost control, closed-loop CO2 control, traction control, launch control, anti-lag, and rotational idle.
- Drive-By-Wire Throttle: Fully supports dual electronic throttle bodies with built-in redundancies.
- Automatic Transmission Control: Compatible with Ford (AODE/4R70W), GM (4L60E/4L80E), Toyota (A340E), Lenco, and Liberty transmissions.
- Multi-Level Engine Protection: Features an integrated, highly advanced engine protection system.
- Suspension and Traction: Supports shock travel and ride height monitoring, alongside advanced torque management targeting driveshaft and engine RPM.
- Racing Features: Includes an integrated race timer, trans brake control, advanced flat shift support, and up to 6 stages of nitrous control.
- High-Speed Logging: Onboard data logging with a massive 512MB internal memory, supporting up to 300 channels at sample rates up to 1ms (1kHz).
- Modern Connectivity: Onboard Wi-Fi and USB-C port for low power up via cable and high-speed communications, compatible with the Haltech Connect App.
Specifications:
- High-Current Outputs (HCO): 4 x 25A continuous (push-pull PWM capable, 5 kHz)
- High-Side Outputs: 12 x 8A continuous (low speed PWM, 200 Hz)
- Half Bridge Outputs (HBO): 4 x 8A (PWM capable, e.g., for electronic throttle)
- Peak and Hold Injector Drivers: 18 (can be used as low-side outputs)
- Ignition Outputs: 12 x low-current (can be used as low-side outputs)
- Digital Pulsed Outputs (DPO): 8 x low-side drive outputs (PWM capable)
- Analog Voltage Inputs (AVI): 23 x 0-5V with redundancy for electronic throttle and switchable 5V pullups
- Engine Position Inputs: 2 x Differential (Trigger and Home) with adjustable thresholds and glitch filters
- Synchronized Pulsed Inputs (SPI): 10 x frequency, zero crossing, or analog inputs (cam sensors, frequency inputs, or 0-5V analog inputs)
- Knock Sensor Inputs: 2
- Wideband Controller: 2 x Onboard controllers supporting NTK and LSU 4.9 sensors
- MAP Sensor: External
- CAN Bus Networks: 3 with switchable termination
- On-Board PDM: Yes
- Inertia / G-Sensor: Yes
- Tuning Table Resolution: 32x32x8 4D
- Variable Cam Control: Up to 4-sensor variable cam control
- Onboard Storage: 512MB
- Low Power Up via Cable: Yes
- Wi-Fi: Yes

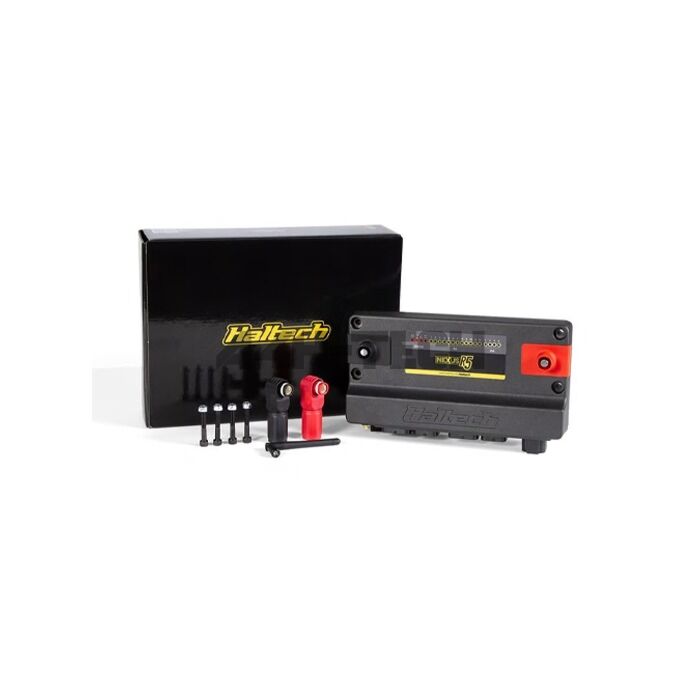

Kit Includes:
- (1) Haltech Nexus R5 VCU
- (1) Set of SurLok connectors (Red and Black)
- (1) Wi-Fi antenna
- Mounting bolts
- USB-C Cable and USB-C dust cap
