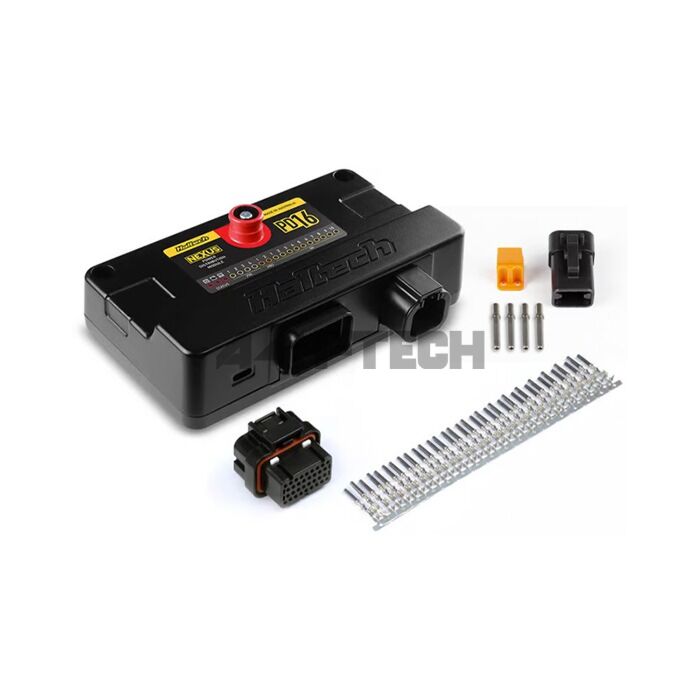

Haltech Nexus PD16 PDM + plug&pin kit.
Build a custom motorsport wire loom for your Haltech setup with the Haltech NEXUS PD16 PDM and plug & pin kit. Engineered as an intelligent power expansion unit for Haltech Elite and NEXUS ECUs, the PD16 eliminates heavy relay boxes and fuse panels. Supplied with all required main mating plugs—including the 34-pin Superseal connector and Deutsch DTP 25A high-current plug—this kit gives custom harness builders everything needed to terminate power, ground, input, and CAN bus connections directly to the module.
Specifications:
- Product Type: Power Distribution Module (PDM) with Connector Plug & Pin Kit
- Network Integration: Haltech CAN Bus System
- Included Connectors: 34-Pin Superseal Plug & Pins (Key 1), Male Deutsch DTP-06-4S (25A) Plug & Pins, 120A Red SurLok Connector
- Output Channels: 10x High-Side, 2x Half-Bridge, 4x 25A High-Current
- System Inputs: 8x Inputs + Dedicated Ignition Switch Input
- Auxiliary Power: 5V Sensor Supply / Sensor Ground
- Power Interface: 120A SurLok Connector
Notes: Requires a compatible Haltech Elite or NEXUS ECU to operate; cannot be used as a standalone PDM.
