Doctronic ProECU-K ECU systeem incl. ECU (Civic 01-06 1.4/1.6/1.7)

For 2001 to 2005 Hondas with D14/D16/D17 Engines with Coil-on-Plugs and no distributor we found a Plug-and-Play ECU Tuning Solution.
Our ProECU-K can be used with a special prepared K-Series ECU (PRA or PRB).
The Engine can be left untouched, no need to replace any Sensor or Cam-Gear!

All stock function remain, even the Air Condition and the Gauge Cluster will work.

FEATURES:

o Edit Fuel, Ignition and Cam Tables
o Expanded Tables for Boost (20x20 Cells)
o 2D & 3D Graphics and Edit in Graphic Mode
o Fuel Scaler for bigger Injectors
o Fuel Corrections
o Ignition Corrections
o VTEC Control incl. full VTEC Window
o VTC Locking, Disabling
o Idle Control
o Rev Limiters, Fuel and Ignition Cut
o Shiftlight by Gear
o Launch Control (2 Step) by Ignition Cut
o Launch Control User Setable
o Flatshift (3 Step) by Igniton Cut
o Flatshift by Gear
o Antilag for Launch Control and Flatshift
o Shiftcut for Sequential Gearboxes by Ignition Cut
o Shiftcut by Gear
o Lambda Control
o external Wideband as AF Sensor and/or in Datalog
o Failsave Function
o Immobilizer Disabling or Bypassing
o Knocksensor Control
o Fan Control
o Automatic AC off
o ECU Password Protection
o OBDII Error Handling
o Support for any linear MAP Sensor
o Easy TPS Calibration
o Gear Ratio Setup with easy learn Function
o Gear from Analog Source (i.e. Sequential Gearbox)
o Support for non Stock IAT Sensor
o Support for non Stock ECT Sensor
o Additional Sensors (6) with Limitcheck
o Engine Protection
o Boost Cut
o Boost Control Valve Control by PWM
o Boost Control by Gear
o two Sets of Boost Control
o Nitrous or General Output
o Userconfigurable Dashboard
o Realtime Display of ECU Sensors and Parameters
o Errorcodes (DTC) And Readiness Codes
o Realtime Datalogging
o Graphical View of Datalog
o Select Tables from Datalog
o Datalog to USB Stick
o Android Dashboard Application
o Interface to Dashboard
o Highspeed USB Communication
o Runs from stock ECU Hardware, no Piggypack or Daughterboard needed!

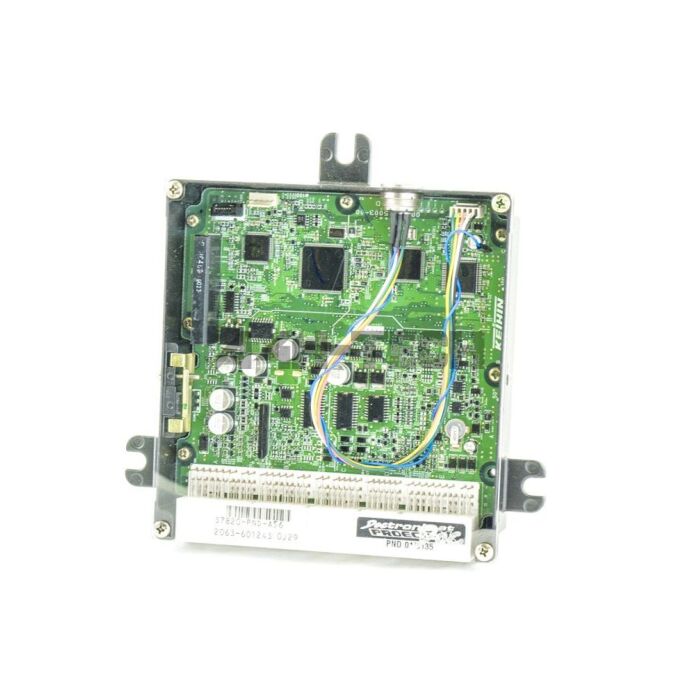

PLEASE NOTE: This is a board INCLUDING PRA ECU (K20 ECU) and is plug and play. Only remapping of the ECU is needed.
If you have a PRA or PRB ECU yourself, we are also able to offer the board seperately.
