Brian Crower nockenwellen stage 2 Forced induction Spec (H22-serie motor)

Inkl. 21% MwSt

€ 832,00

Versandkosten? Berechnen Sie es in ihrem warenkorb.

Auf Lager

Zum Ende der Bildgalerie springen

Zum Anfang der Bildgalerie springen

Beschreibung

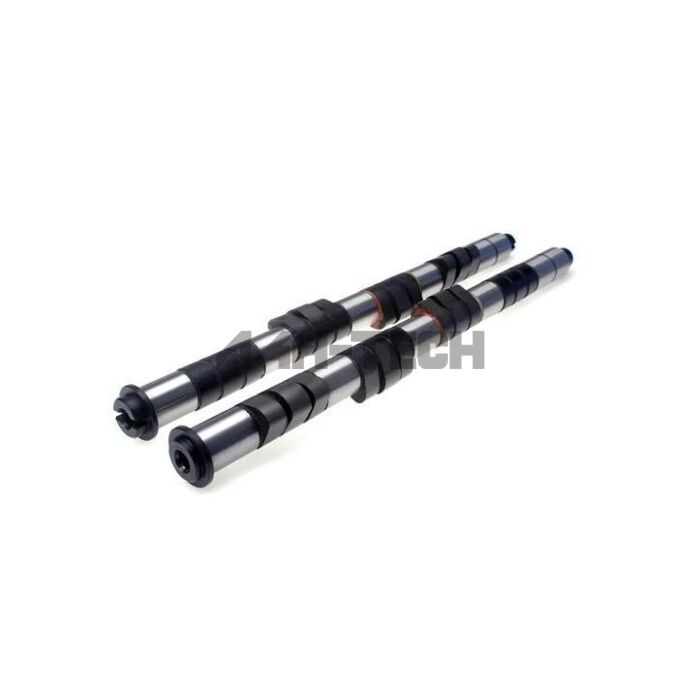

Honda H22 Stage 2 Camshafts - Forced Induction Spec

NEW PROFILE DESIGN - Short duration profile builds cylinder pressure by reducing overlap, high lift for more air intake. Requires kit BC0030 or BC0030S.

Adv Dur	310°/308°
Dur @ .050	257°/256°
Valve Lift (1.55:1)	.486"/.465"
Valve Lift (mm)	12.34/11.81

Cam Card: Click here

IMPORTANT INFORMATION: Do not use impact wrench/gun to torque cam gear to camshaft.Torque cam gear bolt to 22 ft lbs. Aftermarket cams are chilled cast and require a lesser torque value than the OEM/factory steel cams. If using aftermarket gears, make certain the cam gear bolt is able to engage 3 to 4 threads into the body of the cam. Thicker gears will cause the cam bolt to only engage the threads in the snout, increasing the chance of breakage.
