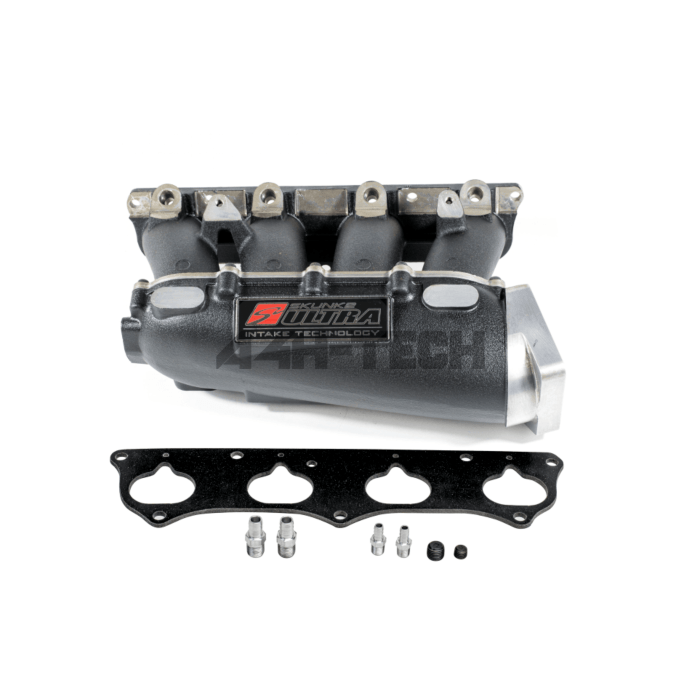

Skunk2 Colector de admisión Serie ULTRA Street negro (motores K20A)
80% de los productos en nuestra tienda están en stock interno o externo, lo que nos permite procesar tu pedido con prontitud (entre unas pocas horas y varios días laborables).
Evidentemente, es posible que un producto tenga un plazo de entrega (inesperadamente) más largo.
Después de recibir tu pedido, te informaremos al respecto y, si es necesario, te ofreceremos alternativas disponibles. Mantén un buen control sobre tu buzón de correo.
Proporcionamos información de stock deliberadamente después de realizar tu pedido, ya que muchos proveedores no disponen de un sistema que permita sincronizar estos datos. Además, no queremos mostrar “estimaciones” como muchas otras tiendas online, donde finalmente acabas recibiendo un plazo diferente o más largo del que se indicaba inicialmente.
Queremos darte únicamente información real y actualizada en el momento en que procesamos tu pedido, para evitar cualquier forma de confusión o desinformación.
¿Necesitas un producto con urgencia y quieres estar seguro de que lo tenemos en stock?
Envíanos un correo electrónico, llámanos o utiliza el botón "haz una pregunta sobre este producto" que encontrarás debajo de la descripción del artículo.
The much anticipated Ultra "Street" Intake Manifold for the '02-'05 Civic Si and '02-'06 RSX/ RSX Type S, and/ or any swap using the K20A/ K20A2/ K20Z1/ K24A1 engines or cylinder heads has finally arrived!
The Ultra Series is years of research and development, culminated in a multi-piece cast aluminum intake manifold that offers advantages that only a modular design could allow. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a two-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum lid and optional plenum spacers. In addition to CFD testing, the Ultra Series Intake Manifold has undergone extensive in-house dyno testing which has led to a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Skunk2 Racing Ultra Street Intake Manifolds are cast-aluminum, manufactured from high-grade 356 aluminum alloy for strength and lightweight. Each manifold is CNC-machined for a precise fit, and individually inspected for quality assurance. The Ultra Series Street manifold features a generous 71mm throttle body opening and is constructed with thick walls at entry, minimizing concerns of breakthrough when port matching. Intense planning and design went into the plenum to distribute even airflow to all four cylinders under dynamic load conditions. Placement and design of the velocity stacks were rigorously flow tested to ensure maximum delivery of air to the cylinder. Large velocity stack raised bell mouth entries lead to 6.85” long intake runners with smooth transitions allowing the Ultra Street Intake Manifold to really move some air!
Skunk2 Racing Ultra Street Intake Manifolds are designed to be used in modified naturally aspirated applications as well as mild turbo/supercharged setups.
FEATURES:
Modular 2pc. Design w/ Removable Plenum
Rotatable Plenum Allows Driver-side or Passenger-Side Throttle Body Mounting
1.8L Plenum Volume
**
Tapered 6.85" Long High-Velocity Runners w/ Raised Velocity Stack Entries
Generously Cast Runner Walls for Porting
71mm Throttle Body Opening
Lightweight 356 Aluminum Alloy Construction
Hi-Grade Mounting Hardware
Thermal Gasket Included
2 x 1/4" NPT and 2 x 1/8" NPT Accessory Ports
**Optional Billet Aluminum Plenum Spacer Available in .5L Size
Please note:
The K Series Ultra "Street" Manifold uses the EARLY PRB/ PRC style cylinder head and throttle body mounting flange pattern but can be installed on the LATE RBC/ RBB style cylinder heads through the use of an aftermarket Water Bypass Adapter and our DBW Throttle Body Adapter (PN# 309-05-0120)
Installation on the '02-'05 Civic Si (EP3) requires several modifications. The radiator core support must be trimmed, the wiring for the TPS sensor may need to be extended, and clearance between the TPS and radiator hose may require custom upper hose or modification for the radiator.
