Haltech Nexus S3 + Honda Integra DC5 Plug 'n' Play Adapter Harness Kit.
The Haltech Nexus S3 ECU with a plug and play adapter harness is a premium vehicle control and wiring solution designed for Honda Integra DC5 and Acura RSX vehicles. It allows for a direct plug-and-play replacement of the factory ECU, combining the classic features of the Elite 2500 with the advanced processing power and modern capabilities of the Nexus platform. This system enables serious performance upgrades and tuning without modifying your factory wiring.
Suits:
- Acura RSX (2005 to 2006) - Manual transmission only
- Honda Integra DC5 (2005 to 2006) - Manual transmission only
- Note: Does not support factory multiplexed coolant temperature gauge, battery light, and air conditioning request
Features and Software Functions:
- Long Term Learning up to 4D auto-tune maps
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control and Traction Control
- Anti-Lag and Rolling Anti-Lag
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management targeting driveshaft and engine RPM
- Automatic Transmission Control compatible with Ford AODE/4R70W, GM 4L60E, GM 4L80E, Toyota A340E, Lenco, and Liberty
Specifications:
- Injection: 8 (peak and hold)
- Ignition: 8
- Ignition Switch Input: 1
- Engine Control Relay Output: 1
- Total Digital Pulsed Outputs (DPO): 6
- Half Bridge Outputs (HBO): 4 x 8A
- On-Board PDM: No
- 25A High Current Outputs (HCO): 0
- CAN Bus Networks: 2
- MAP Sensor: Internal (4 BAR)
- Inertia / G-Sensor: No
- USB Connection: USB-C (with low power up via cable)
- Wi-Fi Enabled: Yes (compatible with Haltech Connect App)
- Drive-By-Wire Throttle: Dual
- Flex Fuel: Yes
- Knock Control: Dual
- Tuning Table Resolution: 32x32x8 4D
- Onboard Storage: 128MB (supporting up to 300 channels at sample rates up to 1ms)
- Analog Voltage Inputs (AVI): 11 x 0-5V with redundancy and switchable 5V pullup
- Differential Engine Position Inputs: 2 (Trigger and Home) with adjustable thresholds and glitch filters
- Synchronized Pulsed Inputs (SPI): 6 x frequency, zero crossing, or analog inputs
- Knock Sensor Inputs: 2
- On-board Wideband Controller: 1 x NTK/LSU 4.9

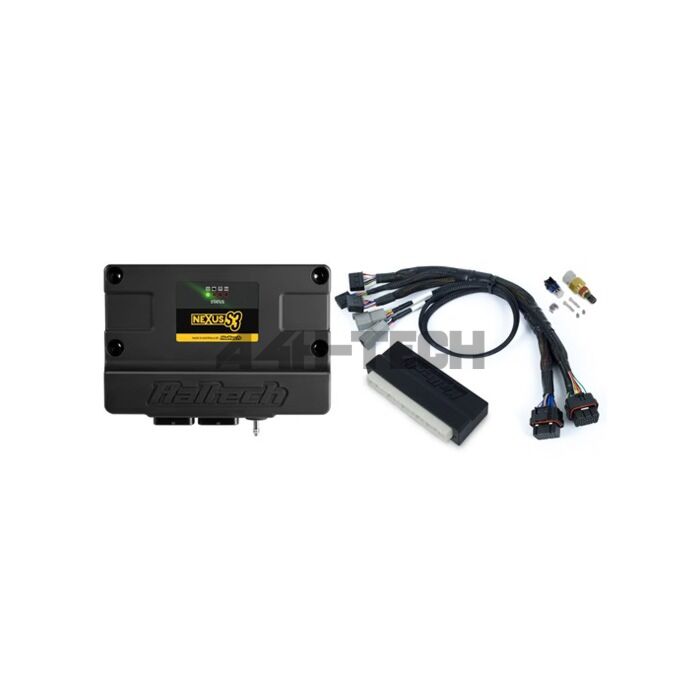

Kit Includes:
- (1) Haltech Nexus S3 ECU
- (1) Haltech injection-molded plastic plug 'n' play adapter harness
- (1) M14 x 1.5 air temperature sensor with matching plug and pins
- (1) Auxiliary I/O 16-pin Tyco plug and pins
PLEASE NOTE: This system is originally designed to work with the specific chassis models like the EP3 and/or DC5,
but with the right engine harness, it is also usable for K-swap engines in other chassis like the EG/EK etc.
