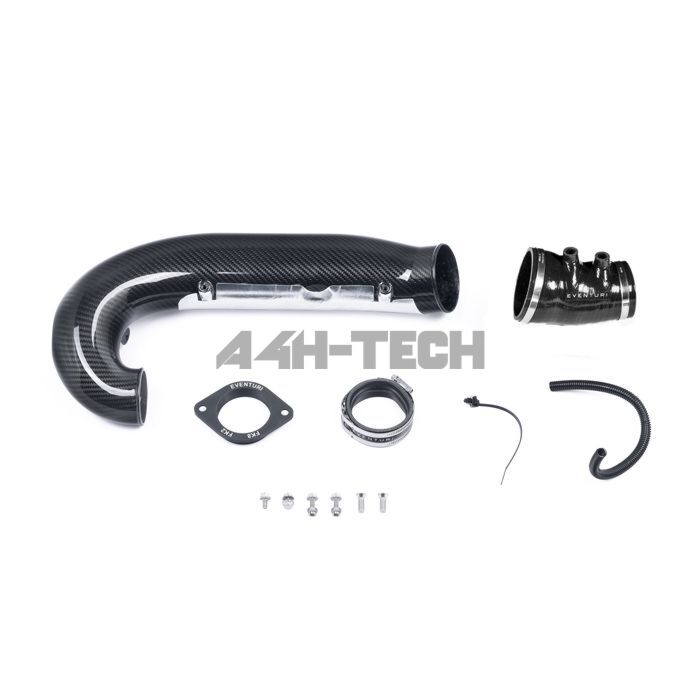

Eventuri tubo de admisión turbo de fibra de carbono con V3 MAF (Honda Civic 15-16 Type R Turbo FK2)
80% de los productos en nuestra tienda están en stock interno o externo, lo que nos permite procesar tu pedido con prontitud (entre unas pocas horas y varios días laborables).
Evidentemente, es posible que un producto tenga un plazo de entrega (inesperadamente) más largo.
Después de recibir tu pedido, te informaremos al respecto y, si es necesario, te ofreceremos alternativas disponibles. Mantén un buen control sobre tu buzón de correo.
Proporcionamos información de stock deliberadamente después de realizar tu pedido, ya que muchos proveedores no disponen de un sistema que permita sincronizar estos datos. Además, no queremos mostrar “estimaciones” como muchas otras tiendas online, donde finalmente acabas recibiendo un plazo diferente o más largo del que se indicaba inicialmente.
Queremos darte únicamente información real y actualizada en el momento en que procesamos tu pedido, para evitar cualquier forma de confusión o desinformación.
¿Necesitas un producto con urgencia y quieres estar seguro de que lo tenemos en stock?
Envíanos un correo electrónico, llámanos o utiliza el botón "haz una pregunta sobre este producto" que encontrarás debajo de la descripción del artículo.
Introducing our updated Carbon Turbo Tube for the FK2 which is now even larger in volume and produces more power. Our turbo tube was designed with these 3 key objectives:
1) VOLUME : Inlet Diameters – Eventuri 78mm at the intake end, increasing to 88mm VS Stock 63mm. Starting at the connection to the intake system, we have matched the MAF tube diameter and this now increases to 88mm through the main section of the tube giving an increase in cross sectional area of 96% compared to the OEM tube. Clearly with significantly larger internal diameter sizes, the Eventuri tube encapsulates a much larger internal volume which de-restricts the flow path to the turbo. This allows the turbo to operate more efficiently and spool up to peak boost levels faster. It also allows the turbo to operate at peak boost with less turbine loading.
2) FLOW QUALITY : Having just a large internal volume is no good unless the flow path also allows for smooth airflow to the turbo. By using high temperature Prepreg Carbon Fiber we have managed to achieve a smooth internal surface. In contrast, the stock inlet tube is made from cast aluminium which ends up with a rough internal surface. This coupled with the smooth curvature of the elbow results in a flow path which minimises turbulence.
3) TEMPERATURE : The final criteria was to minimise the conduction of heat into the airflow. The stock inlet is directly connected to the turbo and so immediately conducts heat as the turbo spools. Our system uses a machined flange which connects to the turbo and then a silicon coupler with an integrated thermal spacer to keep the carbon elbow from having direct contact with the turbo. This barrier coupled with the low through-thickness thermal conductivity of carbon fiber results in less heat being transferred to the airflow.
This turbo tube has been designed to fit our FK2 intake with the updated V3 MAF tube.
